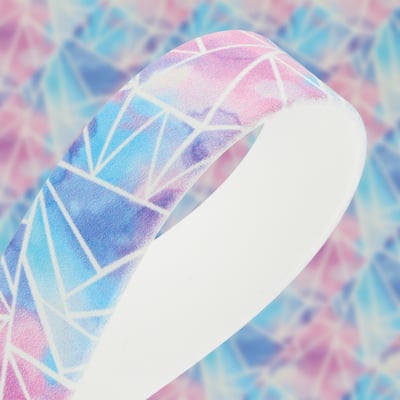

Mosaic BioThane ‘BETA’ ® UV-printed 13 mm - Per Meter

Maximum continuous length per spool is 27 meter.

BioThane Beta is printed with a UV technique. The print is weather and scratch resistant. Sold by the meter, total amount of meters delivered as one length. Maximum continuous length per spool is 27 meter.

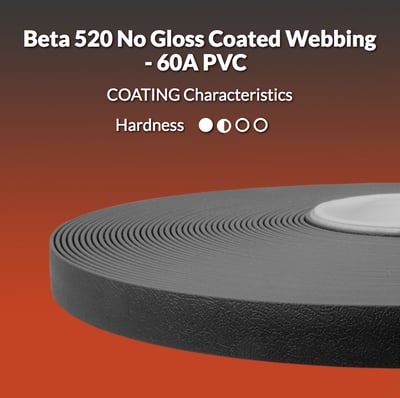

Biothane Beta 520 Coated Webbing | B10 standard profile

The Biothane Beta 520 Series is the closest thing to leather in the horse halter, dog collar and dog leash marketplace. The Biothane Beta 520 Series has gained the trust of horse halter, dog leash and dog collars makers. The Beta series has a matte appearance and an excellent soft flexness, also in cold conditions. This Biothane article with a 13 mm width and circa 2.5 mm thickness comes with a breaking strength of circa 220 kg. Perfect for medium dog collars or leashes as well as horse halters.

Width	Profile	Thickness	Break Strength
13 mm	B10 Standard	ca. 2.5mm	220 kg

Biothane Beta 520 Specifications:

• Print: Mosaic
• Breaking Strength: 220 kg (617lbs)
• Width: Ca. 13 mm (0,51" inch)
• Thickness: Ca. 2.4-2.7 mm.
• Biothane Coating: 520 Beta ®
• Profile: B10 Standard
• Appearance: Matte, no gloss. Embossed Leather Style
• Material: Polyester core and a polymer (PVC) coating
• 60A Shore Hardness PVC Low Gloss
• 35 gram per meter
• Maximum continuous length per spool is 27 meter.
• One-sided printed on white Biothane.

Biothane BETA 520 Features

• Hardness: Soft
• Flex: Good - Excellent
• Cold Flex: Good - Excellent
• Hand Tackiness: Medium
• Peel Adhesion: Good
• Abrasion Resistance: Fair
• UV Resistance: Excellent
• Coating Tear Strength: Fair
• Weather Resistance: Good - Excellent

Please note! * All Biothane Beta product photos shown are digital representations and may vary depending on your screen type from actual coating colour.

What is BioThane ®?

BioThane ® is the brand name of all coated webbing products made by BioThane Coated Webbing Corp. It’s basically a polyester webbing with a TPU or PVC coating that makes it more durable, waterproof, easy to clean and weldable.

Buy BioThane per Meter

BioThane can be ordered by the meter. You will receive the total amount of meters as one length. Please note that the maximum continuous length per spool is 27 meter

Does Biothane hurt dogs or horses?

Not any more than leather! As long as you size the end product correctly it should never hurt your animal.

Will Biothane smell if dogs gets wet?

No, BioThane is stinkproof.

How long will Biothane last?

Under normal use, BioThane will long outlast leather and nylon.

Why is BioThane better than leather?

BioThane ® is more durable, cleanable, stronger and easier to maintain. It is also readily available in different colours.

Is BioThane made in the USA?

Yes, BioThane ® is manufactured in our only plant located in North Ridgeville, Ohio in the USA.

Is 'Beta' BioThane?

YES! Beta ® is a registered trademark owned by BioThane Coated Webbing Corp. Beta® is considered a "coating class" of BioThane ®.
